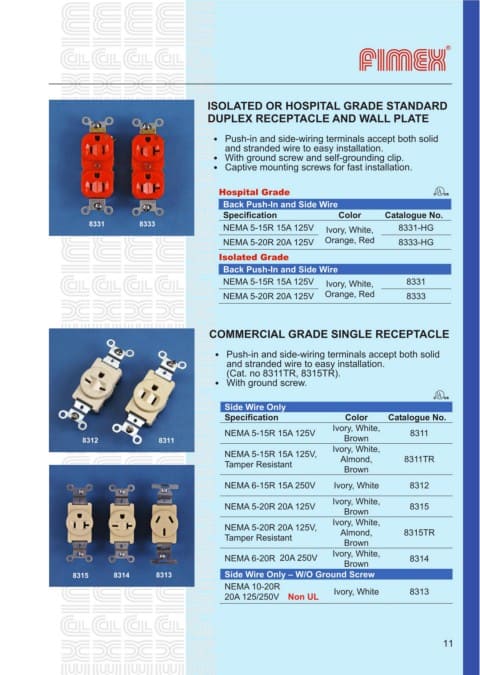

ISOLATED OR HOSPITAL GRADE STANDARD
DUPLEX RECEPTACLE AND WALL PLATE

․ Push-in and side-wiring terminals accept both solid
and stranded wire to easy installation.
․ With ground screw and self-grounding clip.
․ Captive mounting screws for fast installation.

Hospital Grade

Back Push-In and Side Wire
Specification Color Catalogue No.
8331 8333 NEMA 5-15R 15A 125V Ivory, White, 8331-HG

NEMA 5-20R 20A 125V Orange, Red 8333-HG
Isolated Grade
Back Push-In and Side Wire
NEMA 5-15R 15A 125V Ivory, White, 8331
NEMA 5-20R 20A 125V Orange, Red 8333

COMMERCIAL GRADE SINGLE RECEPTACLE

․ Push-in and side-wiring terminals accept both solid
and stranded wire to easy installation.
(Cat. no 8311TR, 8315TR).
․ With ground screw.

Side Wire Only
Specification Color Catalogue No.
Ivory, White,
NEMA 5-15R 15A 125V 8311
8312 8311 Brown
Ivory, White,
NEMA 5-15R 15A 125V, Almond, 8311TR
Tamper Resistant
Brown
NEMA 6-15R 15A 250V Ivory, White 8312
Ivory, White,
NEMA 5-20R 20A 125V 8315
Brown
Ivory, White,
NEMA 5-20R 20A 125V, Almond, 8315TR
Tamper Resistant
Brown
NEMA 6-20R 20A 250V Ivory, White, 8314
Brown
8315 8314 8313 Side Wire Only – W/O Ground Screw
NEMA 10-20R
20A 125/250V Non UL Ivory, White 8313
